Crane Wheel Loads
Calculate crane wheel loads according to BS EN 1991-3:2006 including vertical wheel loads, horizontal forces, dynamic factors, skewing effects, acceleration forces, and engineering report output.
Built for practical crane runway design
A practical workflow for calculating crane wheel loads, horizontal actions, dynamic factors, and runway design forces.
What this tool does
- Calculates crane wheel loads according to BS EN 1991-3:2006.
- Includes vertical wheel loads, horizontal transverse loads, skewing forces, acceleration loads, and buffer forces.
- Supports different wheel arrangements and crane configurations.
- Includes operational dynamic factors and load combinations.
- Generates a readable engineering report with equations and summaries.
Key features
Standards & engineering basis
- BS EN 1991-3:2006 for actions induced by cranes and machinery.
- Dynamic crane factors according to operational crane classes.
- Vertical and horizontal crane runway loading workflow.
- Practical engineering output for runway beam and support design.

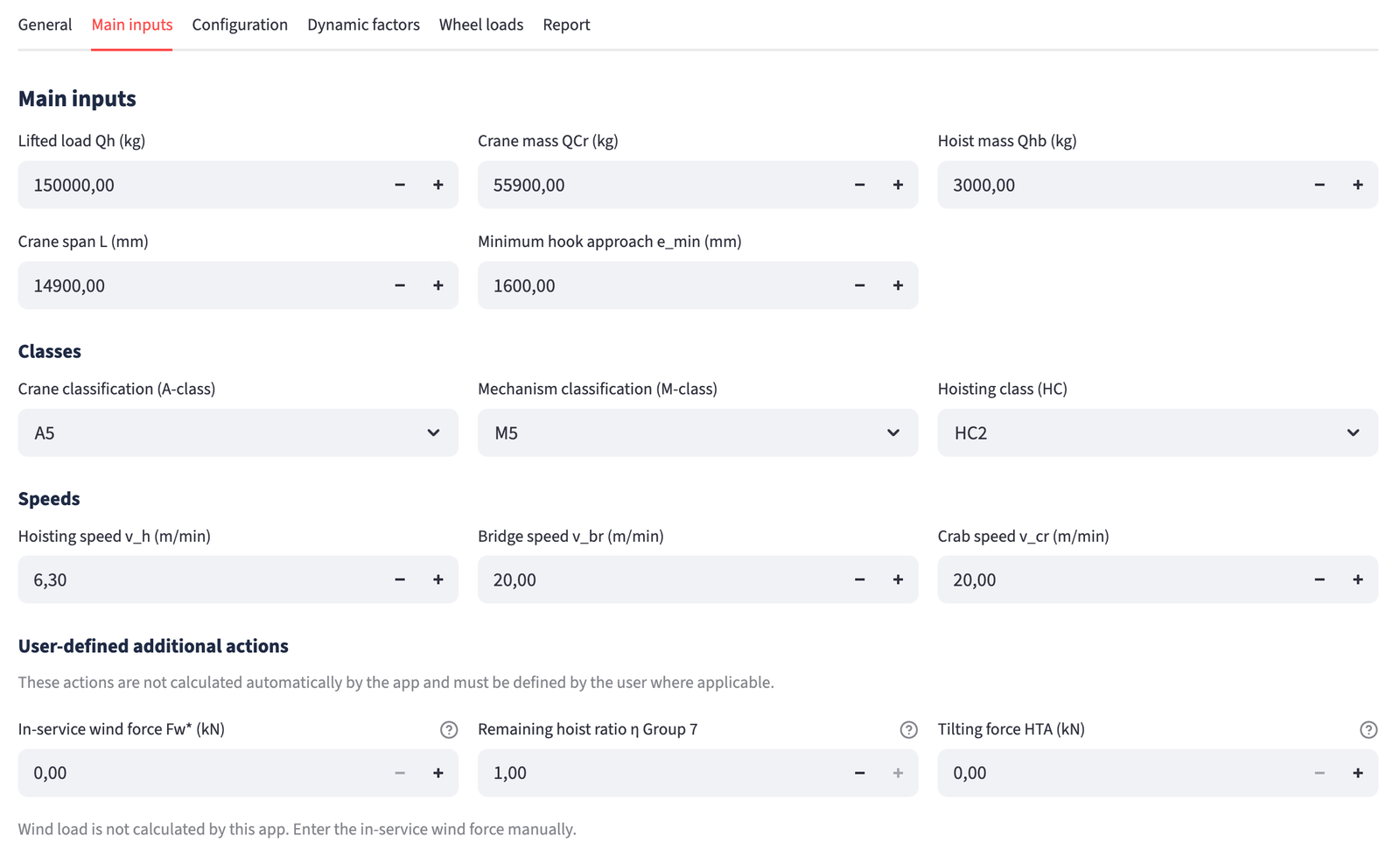

Tool preview
Organized tabs, crane geometry inputs, dynamic factors, wheel load tables, horizontal forces, and report output are presented in a practical engineering workflow.
Access & pricing
Crane Wheel Loads is included in the Crane & Hoist Package. You can purchase access directly from the pricing page.
See PricingEngineering report workflow
The tool is designed to clearly present crane actions: project information, crane geometry, dynamic factors, wheel loads, horizontal forces, load groups, and detailed engineering calculations.
Ready to use Crane Wheel Loads?
Log in if you already have access, or choose a package from the pricing page.
